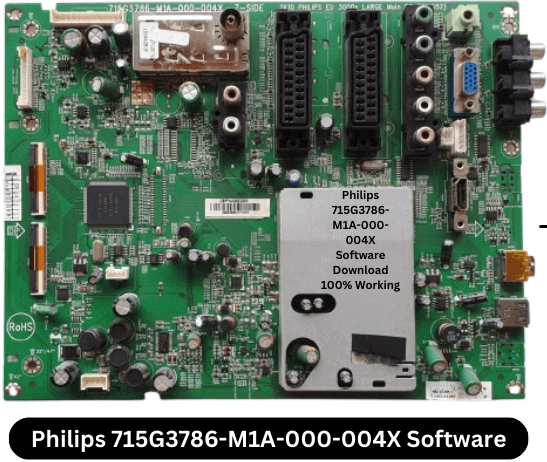

The 715G3786-M1A-000-004X is a versatile ATV driver motherboard designed for LCD/LED TVs, commonly found in Philips-brand TVs. It supports Full HD panels with a resolution of up to 1920×1080, making it compatible with screen sizes ranging from 32 to 42 inches.
Overview of 715G3786-M1A-000-004X Board
This non-combo board requires additional modules for power input and LED backlight driver circuits. It includes an ATV card, making it a comprehensive solution for audio-visual systems. The board features multiple connectivity options like HDMI, USB, PC input, and Component input, along with optional Scart support.
Key Specifications and Features
General Specifications
- Brand/Mark: Universal Board
- Model: 715G3786-M1A-000-004X
- Main Chip: MT8222TMMUT
- Product Type: LCD/LED TV
- Panel Size Supported: 32-42 inches (HD/FHD)
- Resolution: Up to 1920×1080
- Panel Voltage: 5V, 12V
- Power Input: 12V DC
- Flash IC: 4 Mb
- Tuner IC: TDST-H030F
Features
- USB Interface:
- Firmware updates
- Multimedia file playback
- Connectivity:
- HDMI input
- USB interface
- PC input
- Component input
- TV and optional Scart
- Sound and Video Quality:
- High-quality sound output
- Superior video graphics
- Additional Features:
- Earphone output support
- Supports LED backlight driver module
Software Information
- Software Type: Backup Dump
- Compatible Brands: Philips
- File Names:
- 715G3786-M1A-000-004X-PHILIPS-32-DUMP
- 715G3786-M1A-000-004X-PHILIPS-42-DUMP
Important Notes:
- The provided Software is a backup file for technical use only.
- Ensure the mainboard model and version match before installing the Software.
- Use a programming tool to load the Software onto the flash IC.
- Backup your existing Software before proceeding with any updates.
- Kazmi Elecom Team is not responsible for any damage or loss caused during installation.
If you are unfamiliar with Software updates or encounter issues during the process, consult a professional or refer to this guide for detailed instructions.
Download Firmware for Software 715G3786-M1A-000-004X
Click the links below to download the Software files for free:
| S.NO. | Board/Description | Download Link |
|---|---|---|
| 1 | 715G3786-M1A-000-004X-PHILIPS-42-DUMP.rar | Wait 30s |
| 2 | 715G3786-M1A-000-004X-PHILIPS-32-DUMP.rar | Wait 30s |
